💻Configuring Multi Policy using UI

It is possible to ‘join’ multiple independent policies, which are hosted/ran by different Guardian instances, into a group in which one policy would be ‘primary’ and the rest ‘dependent’ or ‘secondary’.

In this setup (only) ’primary’ policies are responsible for minting tokens, which thus can be certified to be compliant with other (‘secondary’) policies via links to VPs issued by the ‘secondary’ policies.

The tokens are only minted when the necessary quorum of approvals (by the ‘secondary’ policies) are reached. This enables the creation of tokens for projects which are compliant with multiple policies codifying different methodologies, issued independently by different Standard Registries.

Note:

• Synchronization of the policy ‘approvals’ and mints is performed through the Header topic of the ‘primary’ policy.

• Guardian instances check the topic for the synchronization message on schedule.

1. Registration of Primary Policy

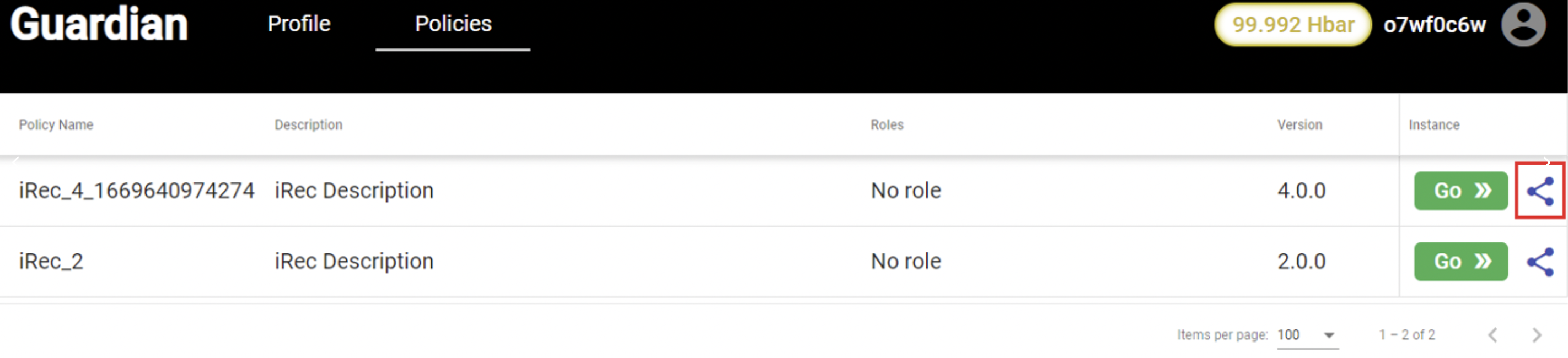

Step 1: Need to click on the linking icon for the policy, which you wanted to be a primary one as shown below:

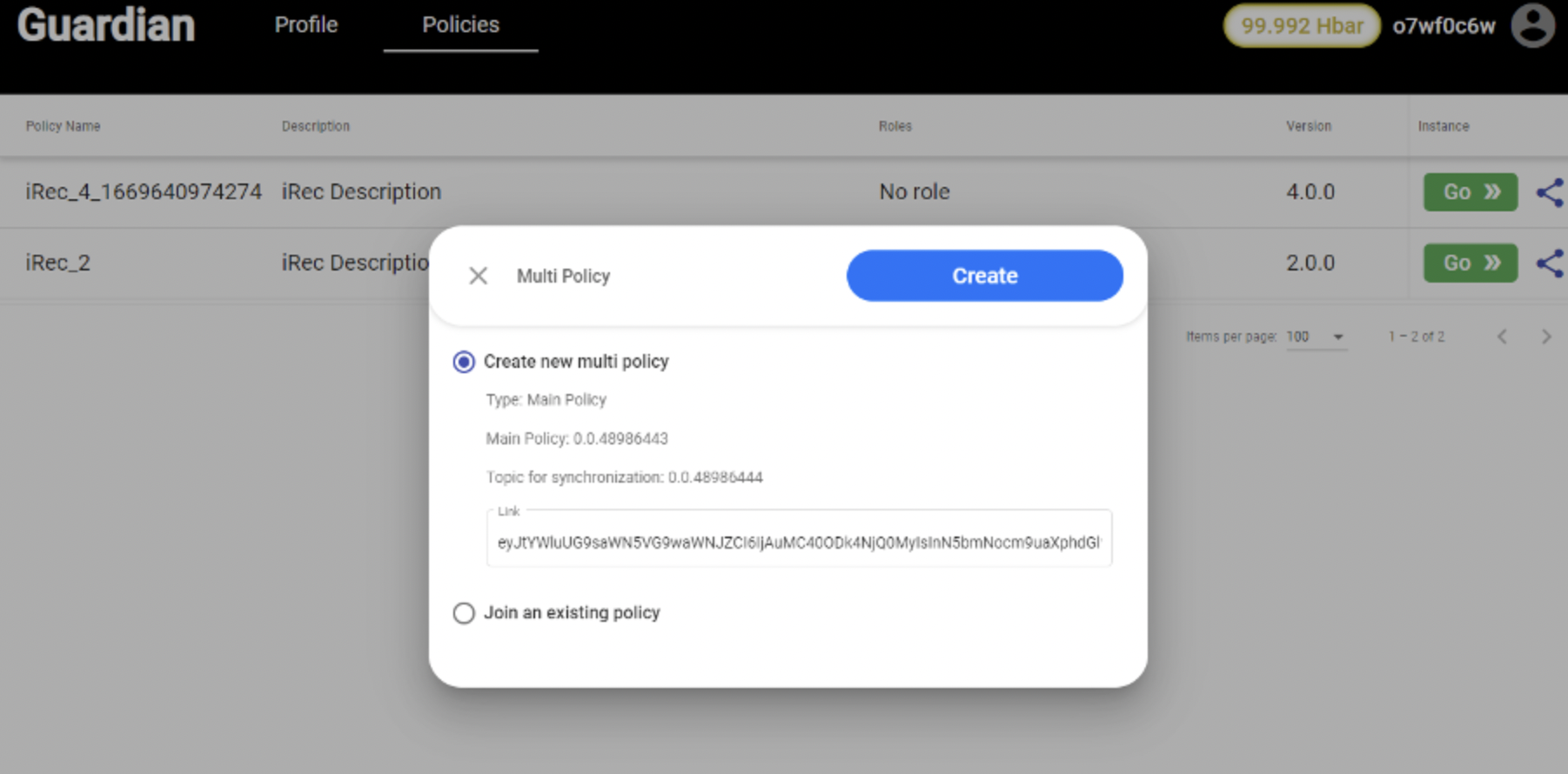

Step 2: We get a policy linking pop up to create a link for the primary policy or joining an existing policy:

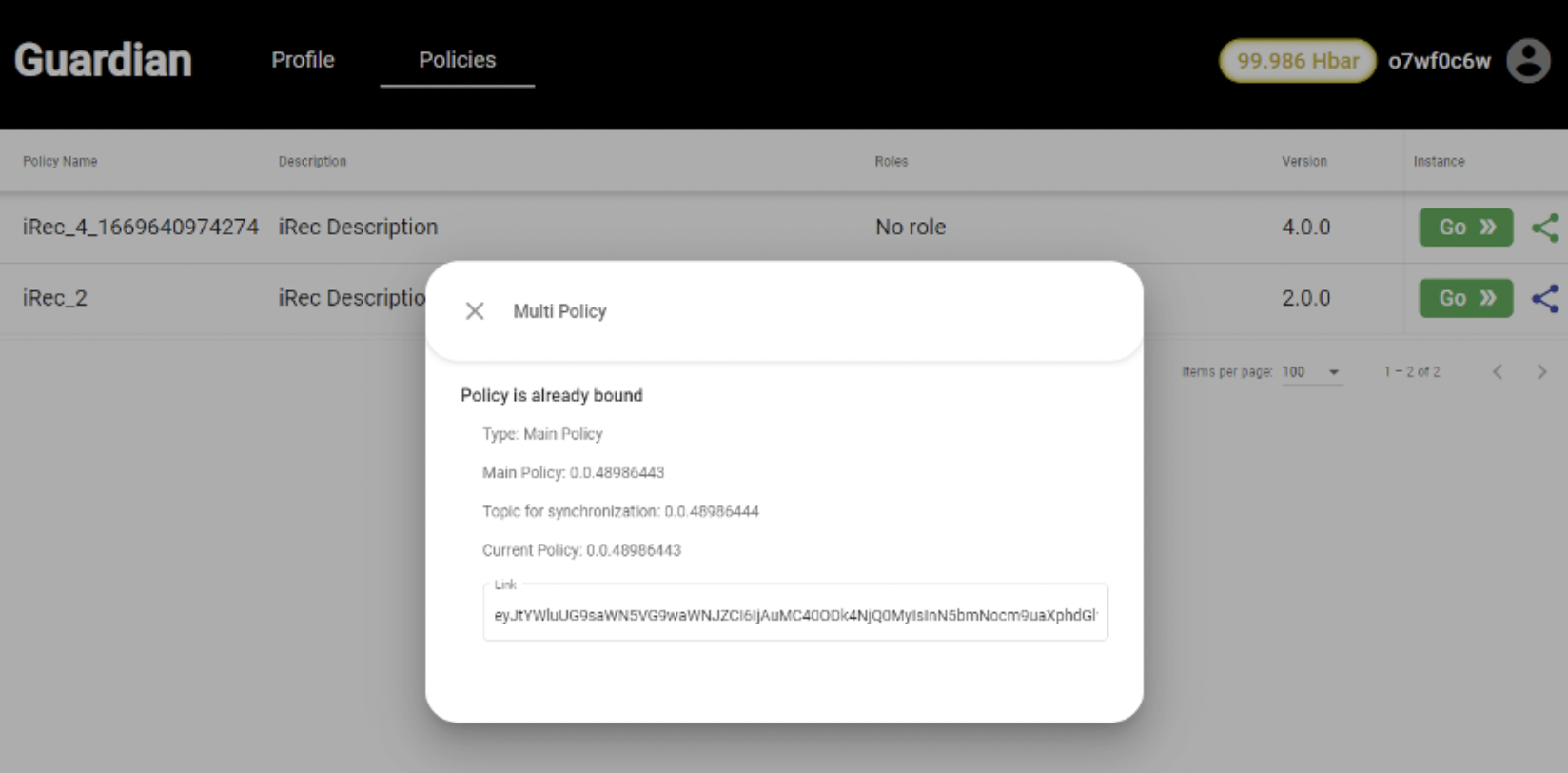

After the ‘primary’ policy is registered a special ‘link’ becomes accessible which can be used to ‘connect’ additional ‘secondary’ policies.

2. Connecting Secondary Policies

Step 1: We click again on the linking icon for secondary policy and will get a linking pop up as shown below:

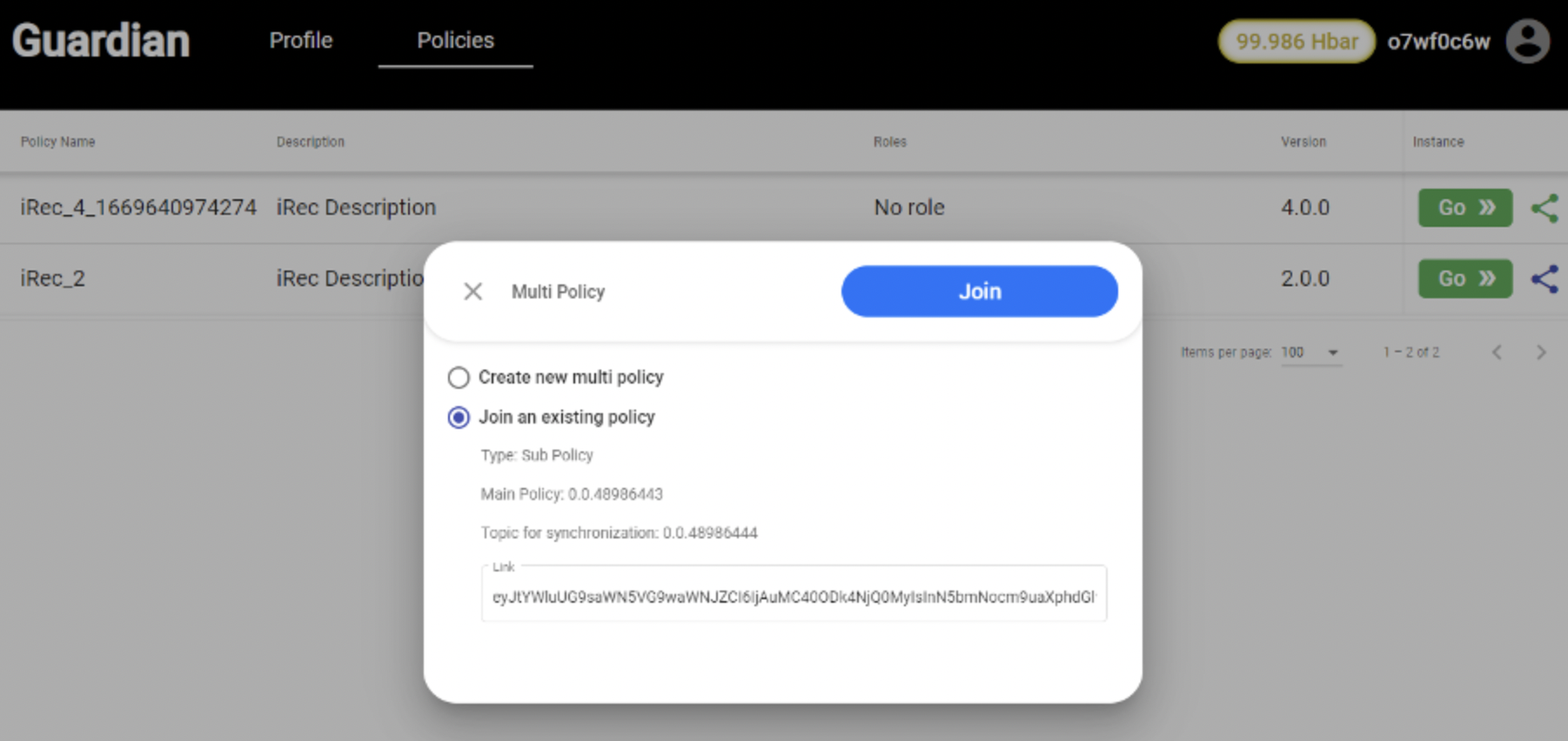

Step 2: In order to make the policy as secondary, we will click on Join button and link with the primary policy.

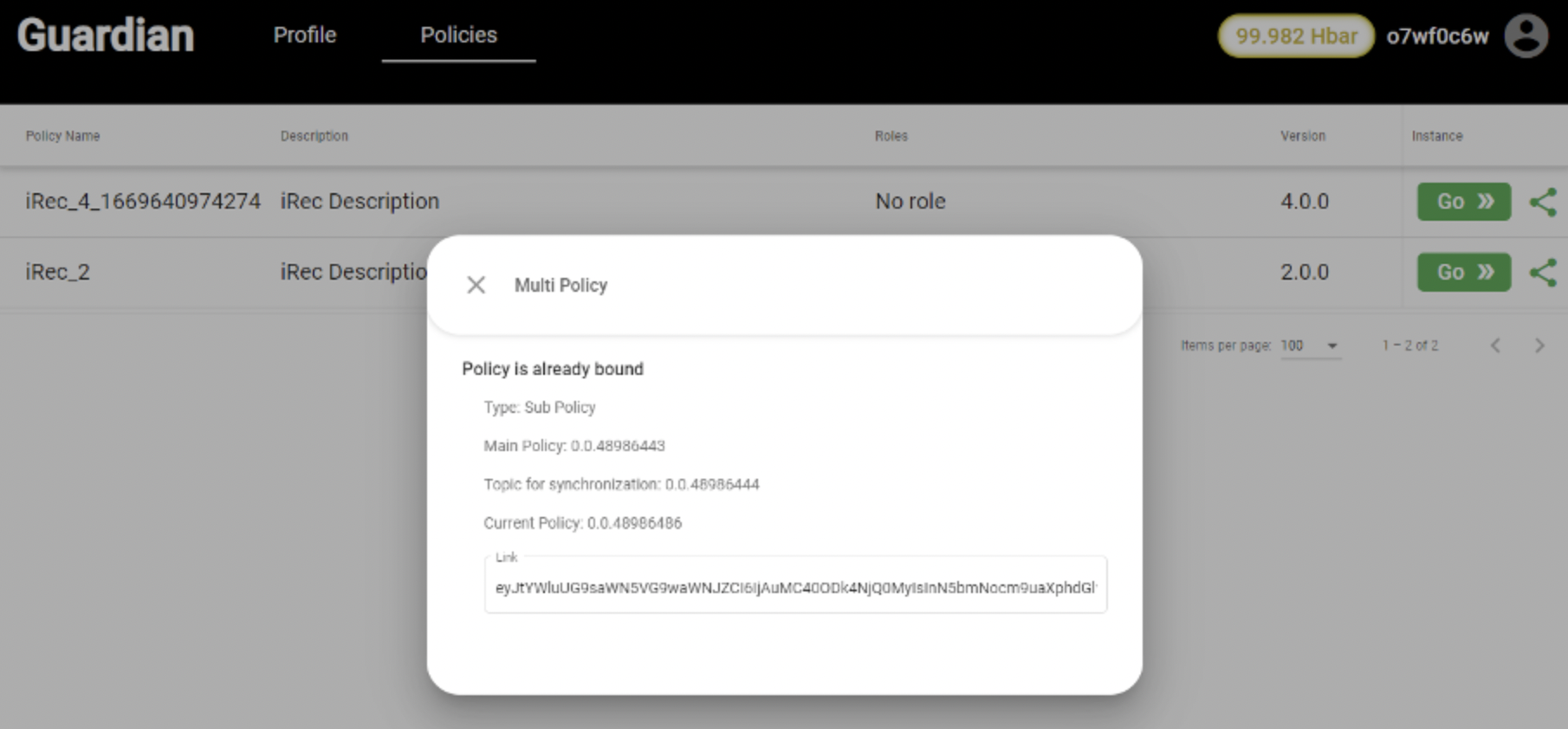

Step 3: Once, linking is performed successfully, you will get below message:

Synchronization topic contains two types of messages:

3.1 Messages on linking the policies:

Property	Description	Example
Id	Message ID	a506d61c-9027-4b75-9dd6-3be126b6f9bf
status	Message Status	"ISSUE"
type	Message Type	"Synchronization Event"
action	Action Type	"create-multi-policy"
lang	Language	"en-US"
user	User ID (Hedera Account ID)	"0.0.47678906"
policy	Policy ID (Hedera Topic ID)	"0.0.48983405"
policyType	Policy type (Main|Sub)	"Main"
policyOwner	Standard Registry (Hedera Account ID)	"0.0.47678905"

3.2 Token mint messages

Property	Description	Example
id	Message ID	"a506d61c-9027-4b75-9dd6-3be126b6f9bf"
status	Message Status	"ISSUE"
type	Message Type	"Synchronization Event"
action	Action Type	"mint"
lang	Language	"en-US"
user	User ID (Hedera Account ID)	"0.0.47678906"
policy	Policy ID (Hedera Topic ID)	"0.0.48983405"
policyType	Policy type (Main|Sub)	"Main"
policyOwner	Standard Registry (Hedera Account ID)	"0.0.47678905"
messageId	Link to the VP document of the mint	"1669634325.005962003"
tokenId	Token ID which needs to be minted	"0.0.48983329"
amount	Amount of tokens to mint	5
memo	Memo	"1669634325.005962003"
target	User account ID to receive the minted tokens (Hedera Account ID)	"0.0.47678906"
